VIPER_

Footwear / Performance / Research

A TRAIL RUNNING SHOE WITH AN ENCAPSULATED LATTICE MIDSOLE FOR CUSHIONING AND SUPPORT.

THE BRIEF -

DESIGN FOOTWEAR FOR RUNNERS TO EXCEL IN THE VOLCANOS MADERA TRAIL


VOLCANO MADERAS,

OMETEPE ISLANDS

MULTI TERRAIN HILLS



DAMP CONDITIONS



ADAPTABILITY IN TERRAINS


CHALLENGES_


MULTI-TERRAIN

NEED TO ADJUST TO MULTIPLE TERRAIN SURFACES


STABILITY

RUNNERS NEED STABILITY AND SUPPORT IN ACTVITIY

IMPACT

RESPONSIVE CUSHION IS CRITICAL FOR ENERGY RESPONSE

DESIGN MOODBOARD_

DYNAMIC

Screenshot 2022-08-19 223950.png

PRECISION


STRUCTURE

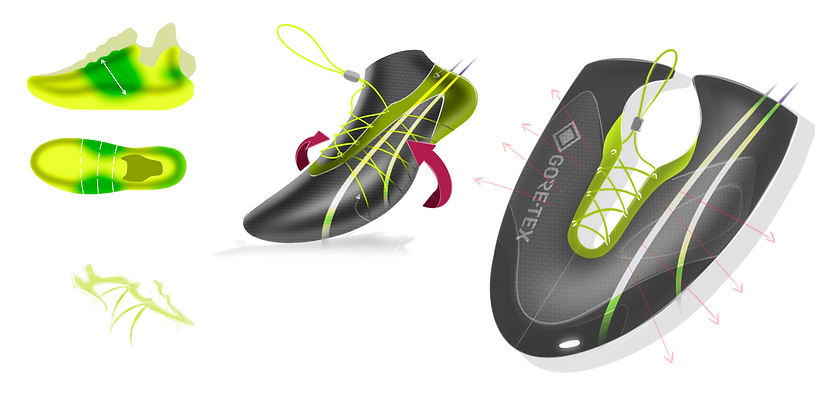

DESIGN PHASE_

Untitled-Artwork (9).png

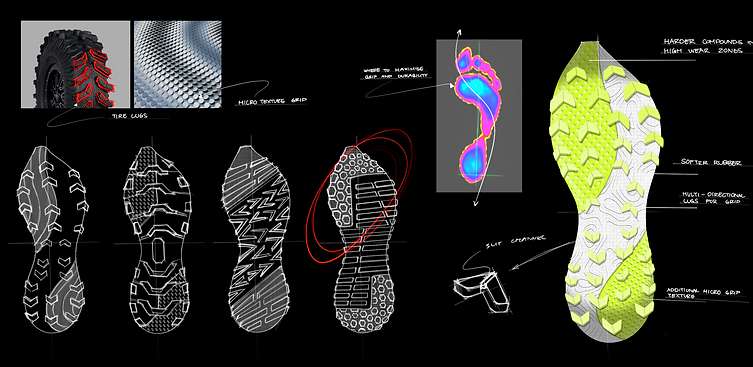

WHICH STRUCTURE ALLOWS SUPPORT WITHOUT COMPROMISING FLEXIBILITY?

Untitled-Artwork (13).png

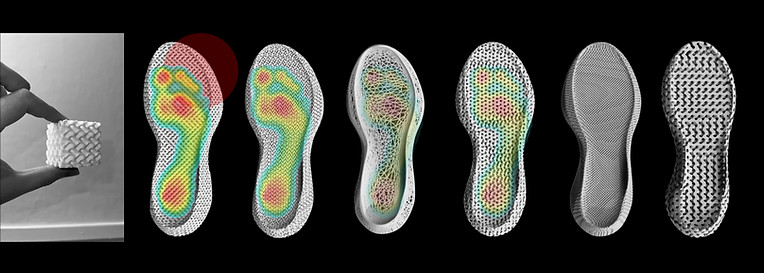

 CUSHIONING IDEATION_

about me_edited.jpg

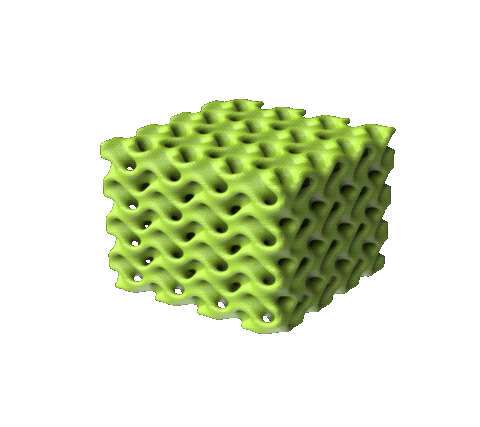

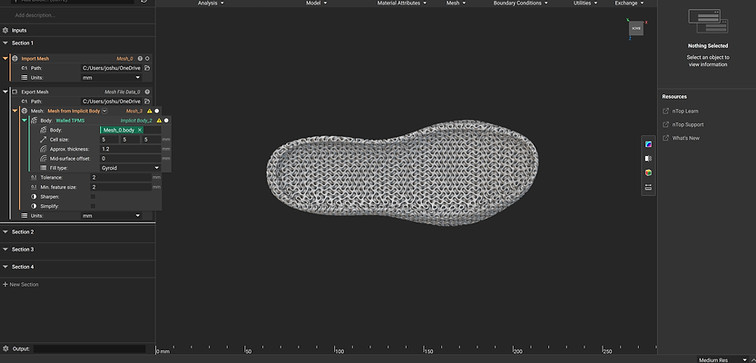

ANALYZING WHAT LATTICE STRUCTURE IS MOST RESPONSIVE_

Untitled-Artwork (7).png
pd4 test render_edited.png

VIPER CUSHION_



A LATTICE CUSHION SUPPORTED BY A SYNTHETIC CASING THAT PROVIDES SUPPORT AND PROTECTION FROM DEBRIS.

BLUEPRINT_

ortho viper updated.png
ortho viper updated.png

COMPONENTS_

KNIT COLLAR


DYNEEMA UPPER

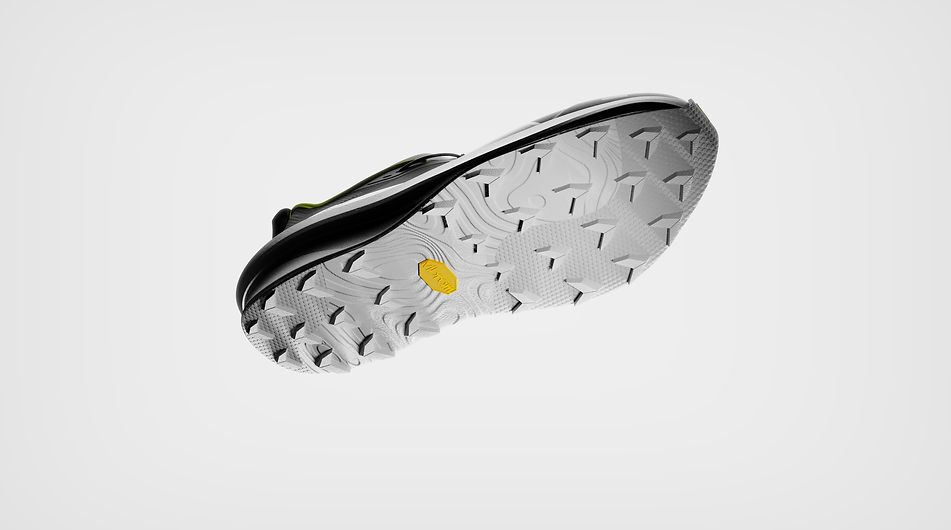

GRAPHENE RUBBER SOLE

SYNTHETIC CASING

GYROID MIDSOLE

VIPER CAGE

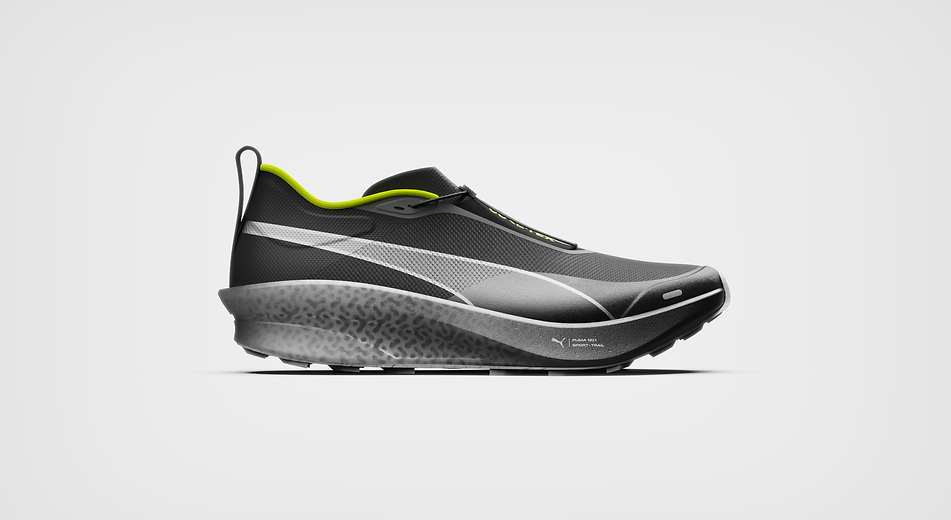

FINAL DESIGN_
